LKA 211N

LKA 211N


Make and model : UD Trucks, FE6T Diesel Engine
Type : Euro 1, 4 cycle, direct injection, water cooled, turbo charged in-line diesel engine
Number of cylinders : 6
Bore x stroke : 108 mm x 126 mm
Total piston displacement : 6,925 cc
Max. output (JIS) : 135 kw (180 hp) at 3,000 rpm
Max. Torque (JIS) : 451 N.m (46 kg-m) at 1,800 rpm
Max. Engine Speed : 3,200 rpm
Compression Ratio : 18 : 1
Lubrication system : Forced circulation type
Cooling system : Forced circulation by centrifugal water pump

Fuel System
Fuel Injection Pump : Bosch A-type in-line plunger
Governor : RLD mechanical all-speed type
Air cleaner : Dry paper element type
Electrical equipment : 24 volts system, negative earth
Generator : 24 volts – 40 amp. Alternator

Weight (kg)
Gross Vehicle Weight : 11,000

Dimensions (mm)
Wheelbase (WB) : 5,500
Overall Length (OL) : 9,530
Overall Width (OW) : 2,375
Overall Height (OH) : 2,615
Front Tread (FT) : 1,760
Rear Tread (RT) : 1,680
Front Overhang (FOH) : 1,280
Rear Overhang (ROH) : 2,600
Cab-to-rear Axle Centre : 4,660
Ground Clearance : 240

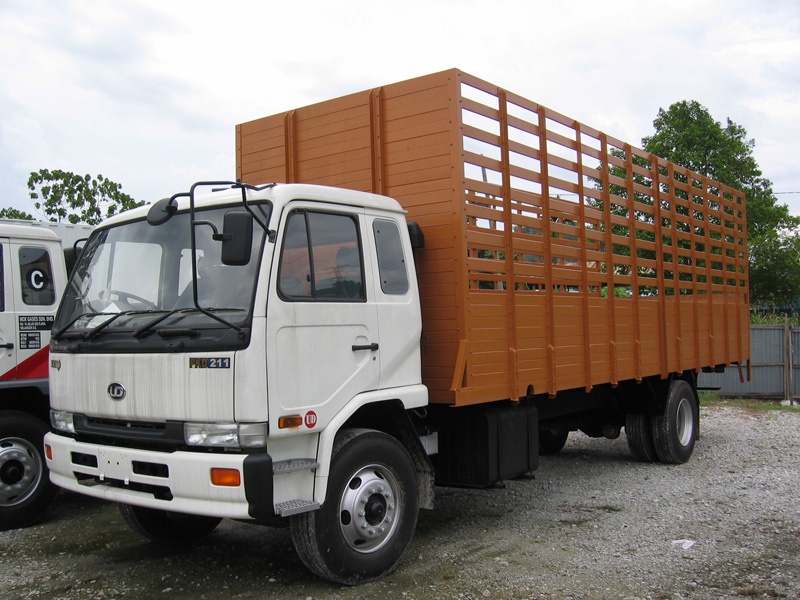

Fixed Side Cargo
Fixed Side Cargo

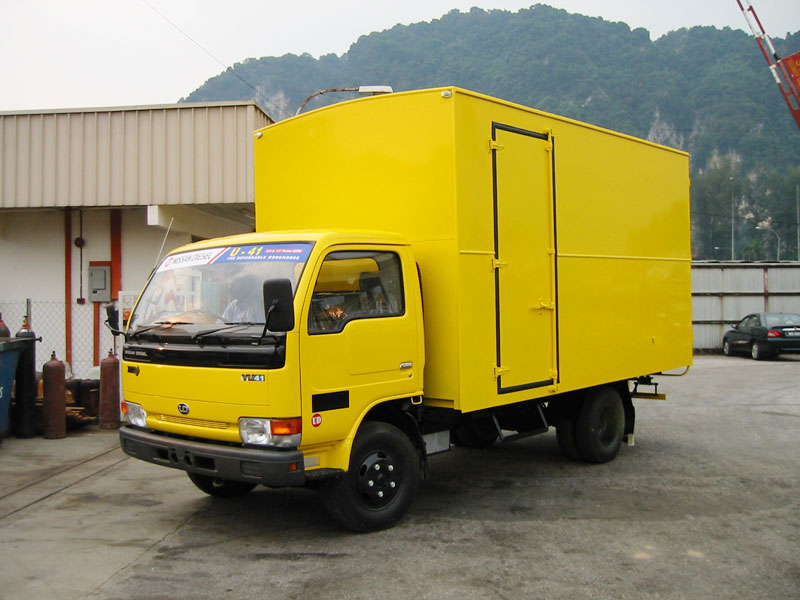

Aluminium Box Van
Aluminium Box Van

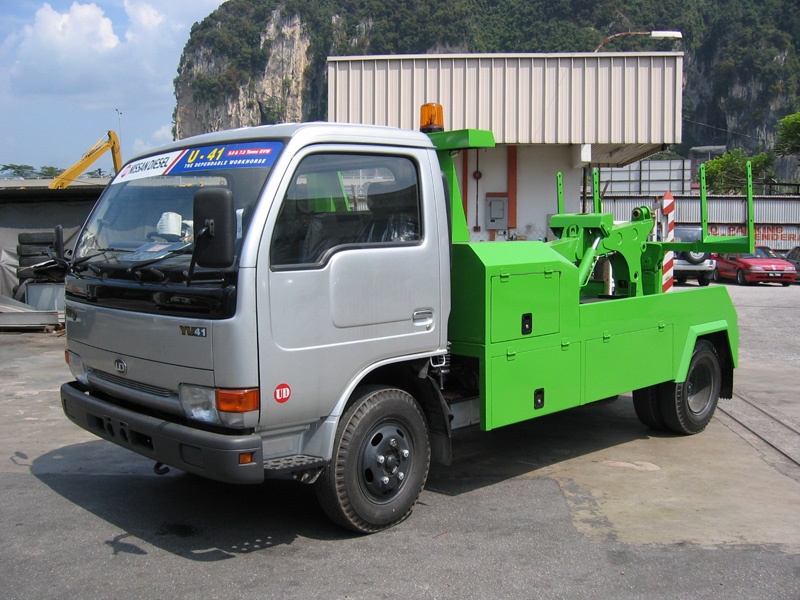

Tow Truck
Tow Truck

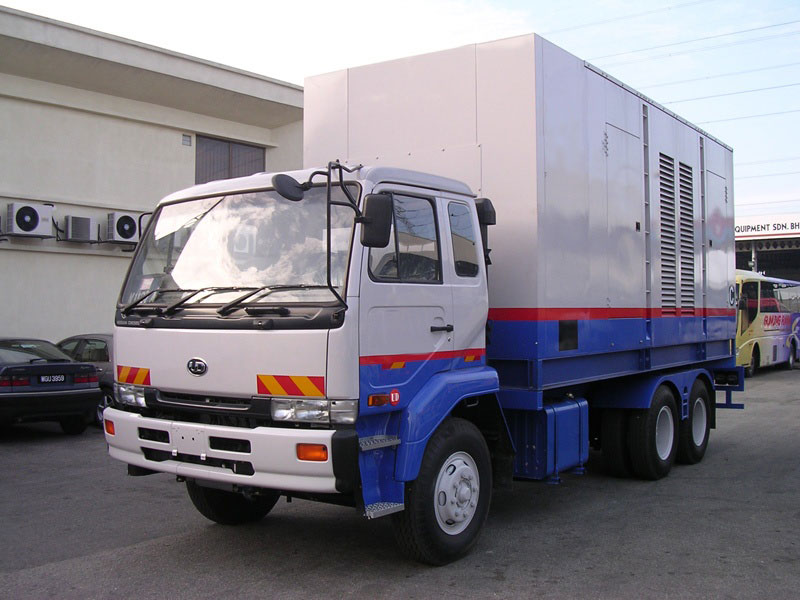

Generator Set
Generator Set

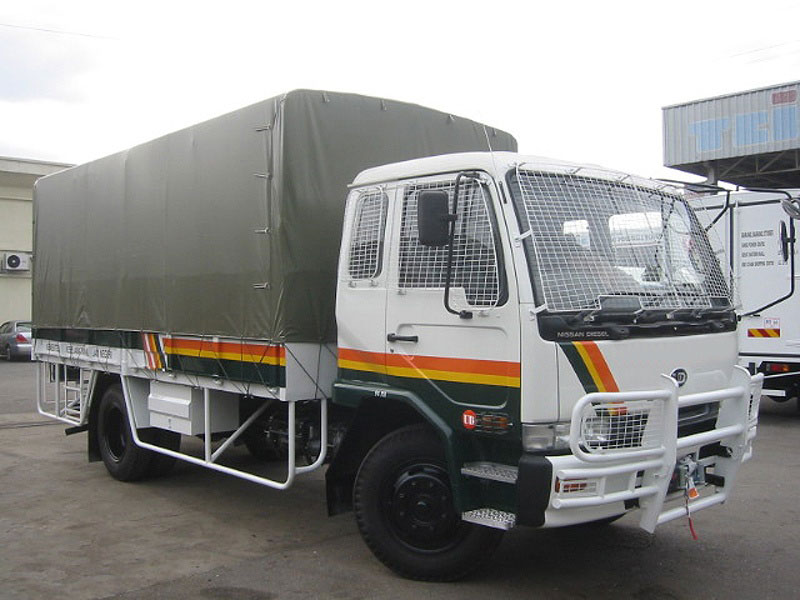

Military Truck
Military Truck

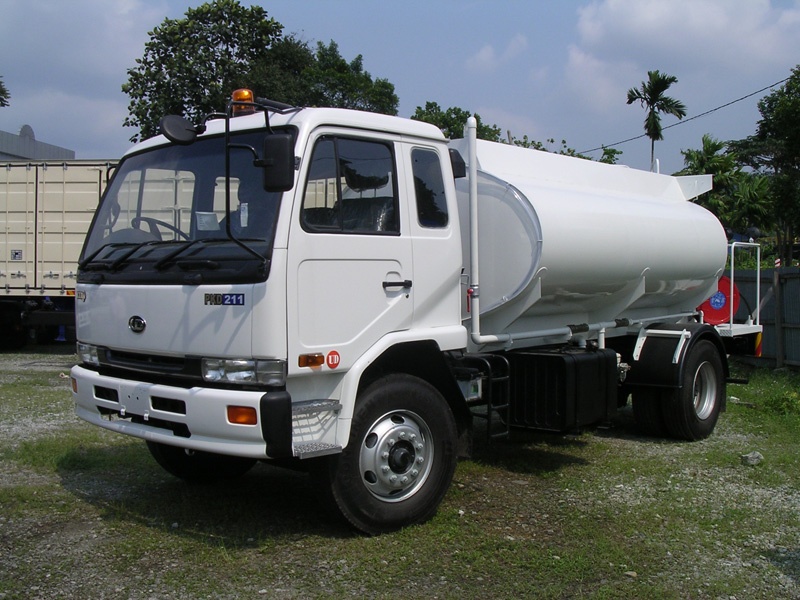

Water Tank
Water Tank

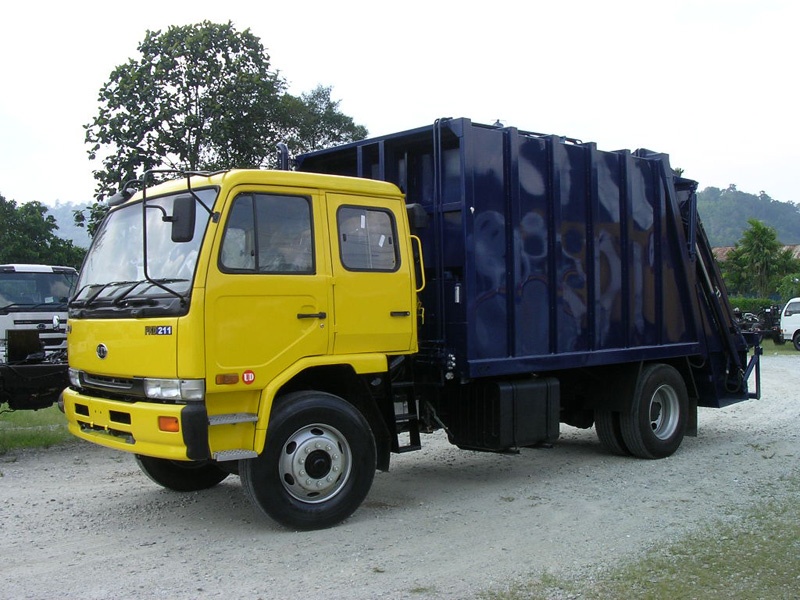

Compactor
Compactor

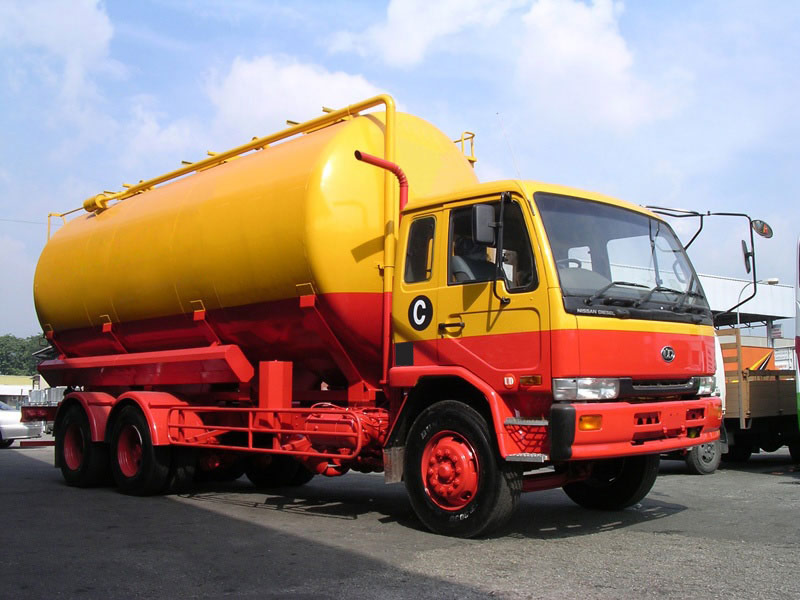

Feedmeal Tanker
Feedmeal Tanker

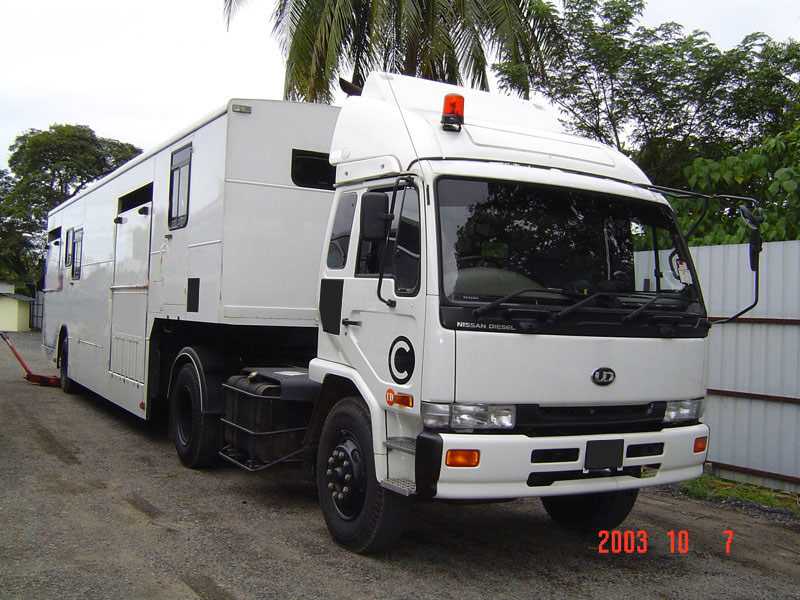

Horse Float
Horse Float

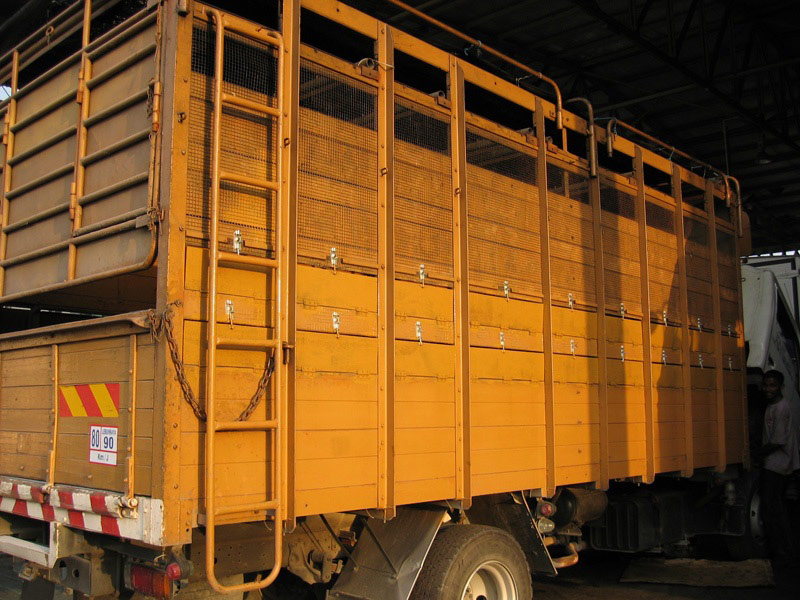

Pig Lorry
Pig Lorry

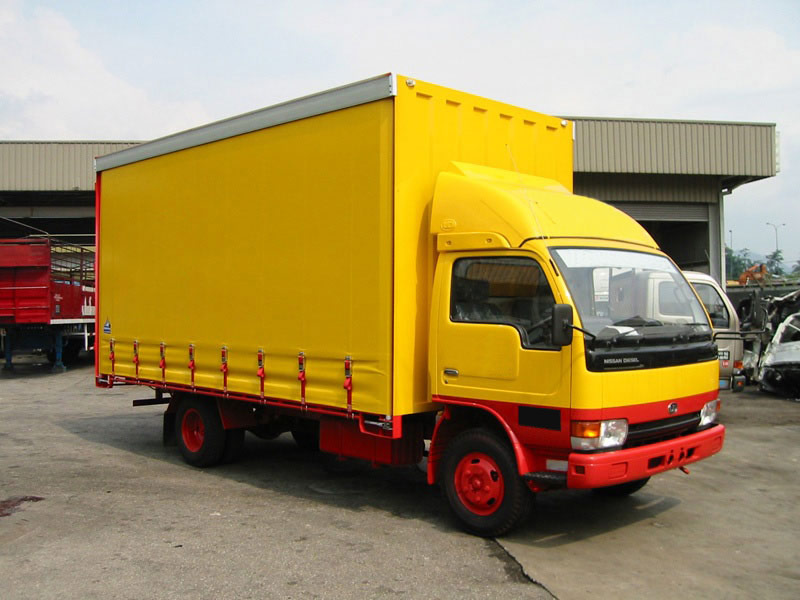

Curtainsider
Curtainsider

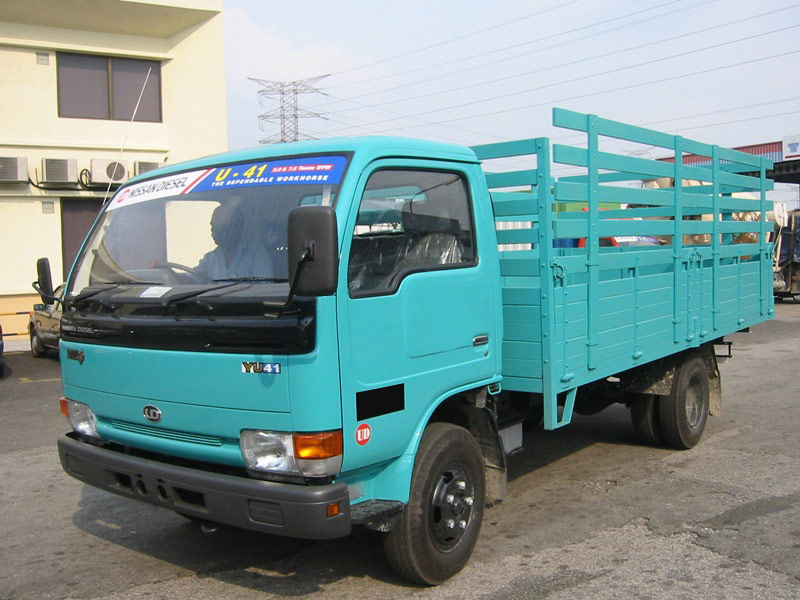

Cargo
Cargo

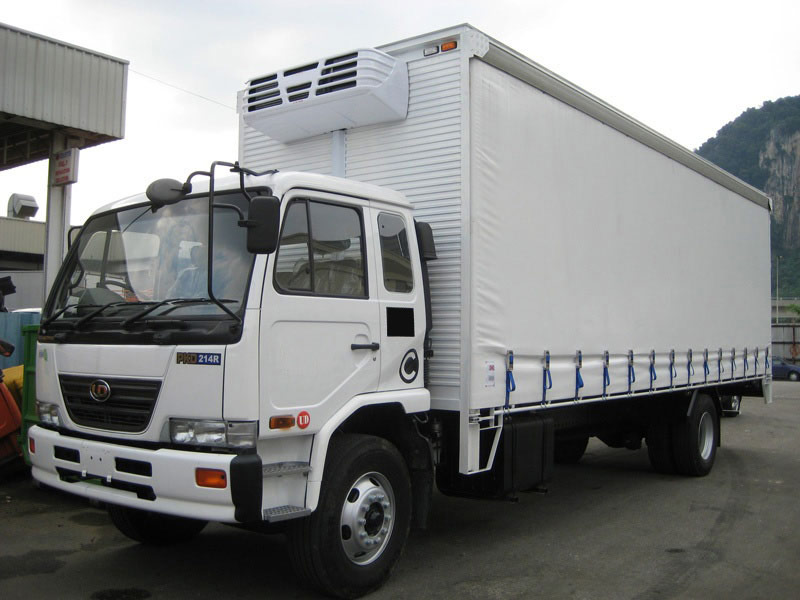

Curtain Refrigerated
Curtain Refrigerated

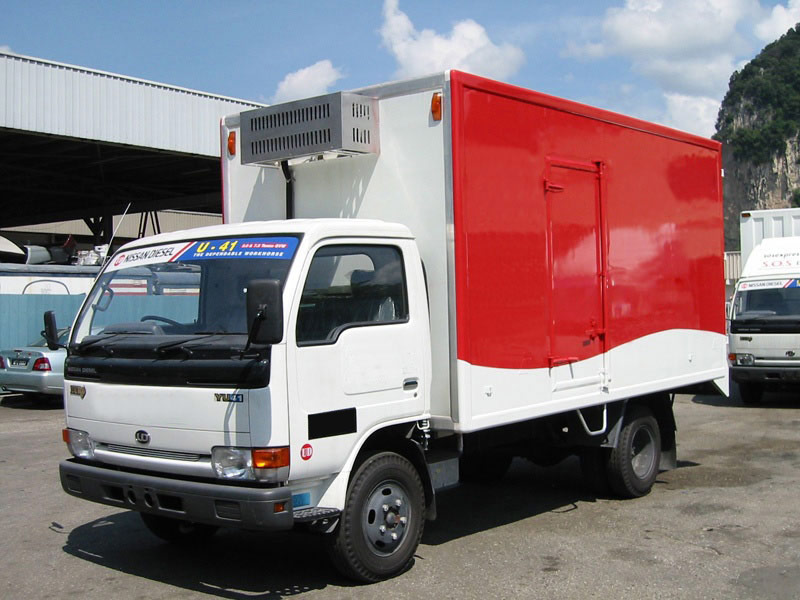

Refrigerated Box Van
Refrigerated Box Van

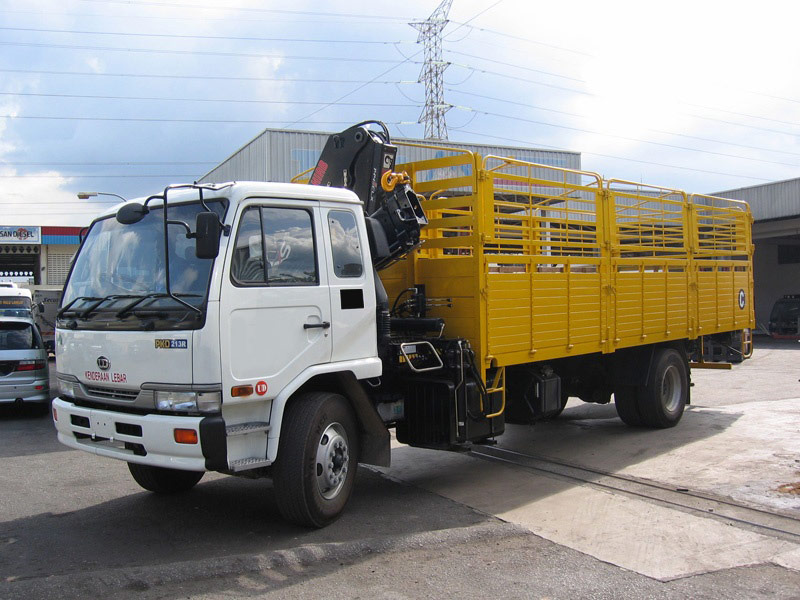

Cargo Crane
Cargo Crane

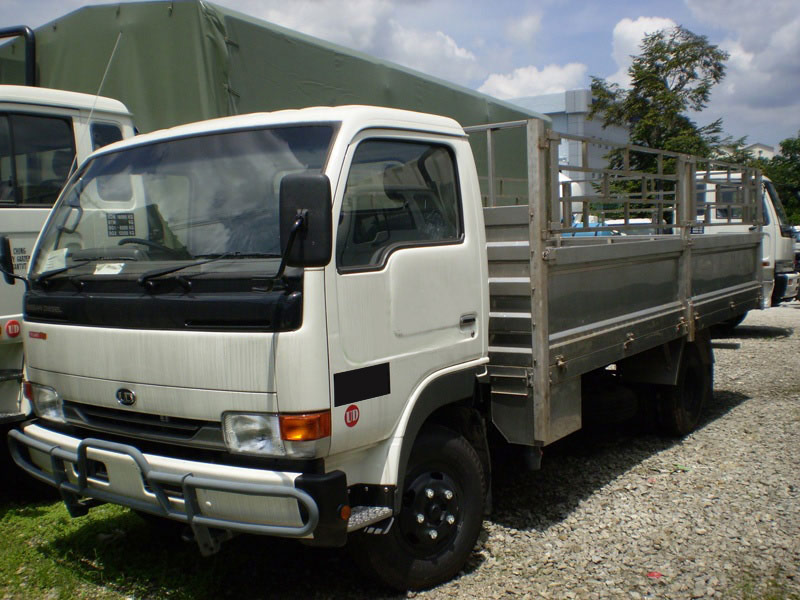

Steel Cargo
Steel Cargo

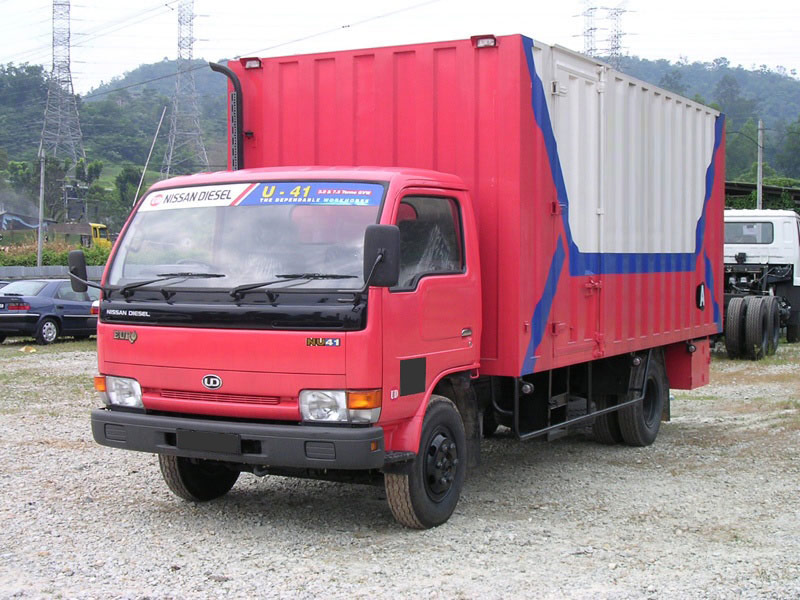

Box Van Fiber Box
Box Van Fiber Box
Corrugated Box
Corrugated Box

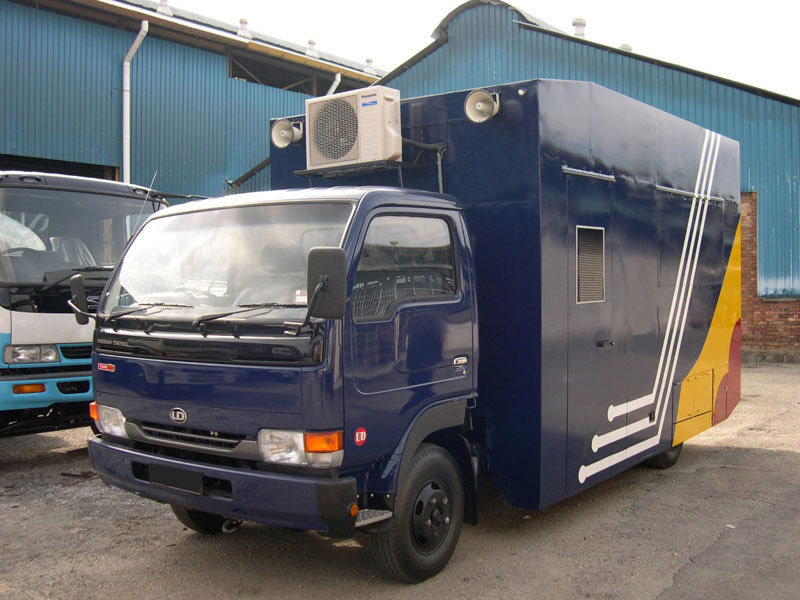

Mobile Office
Mobile Office

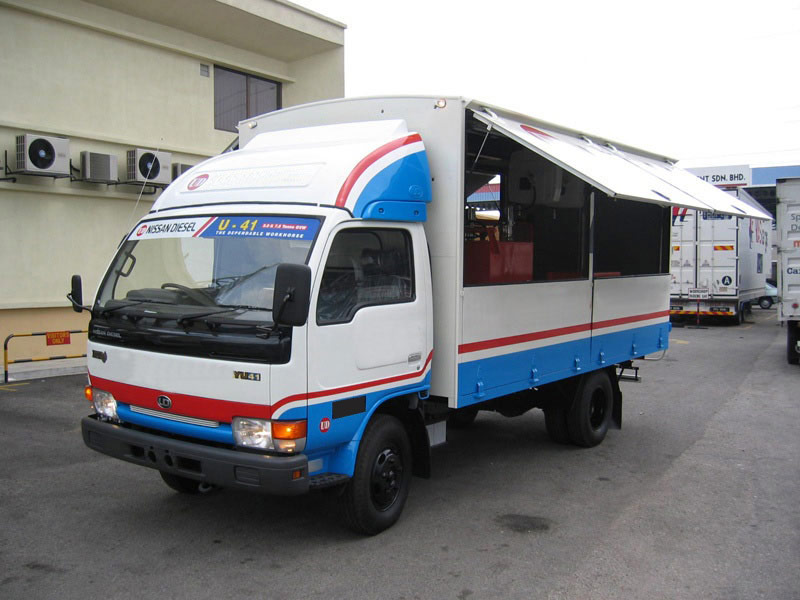

Service Van
Service Van

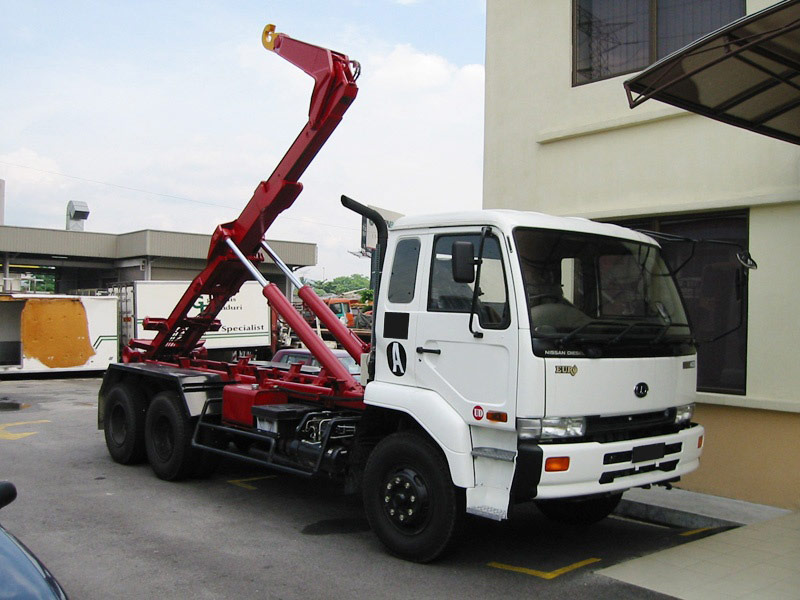

Arm Roll
Arm Roll

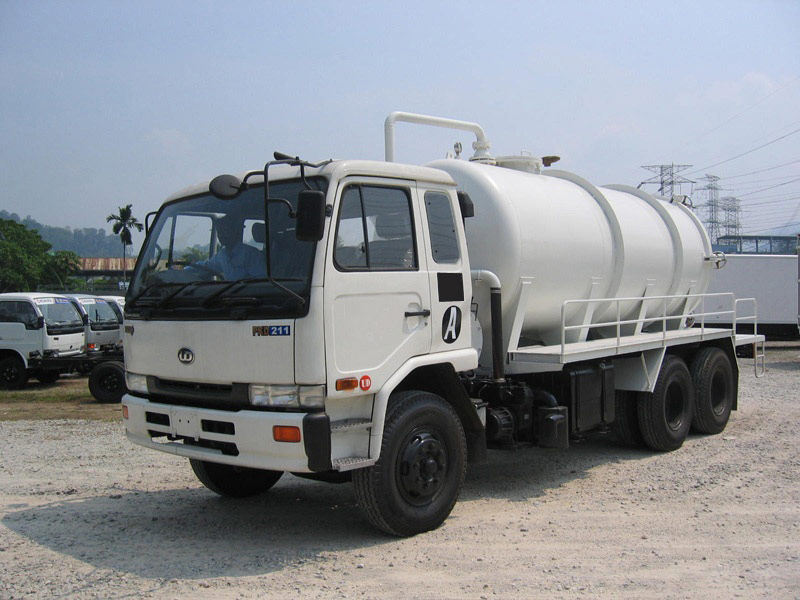

Sewage Tank
Sewage Tank

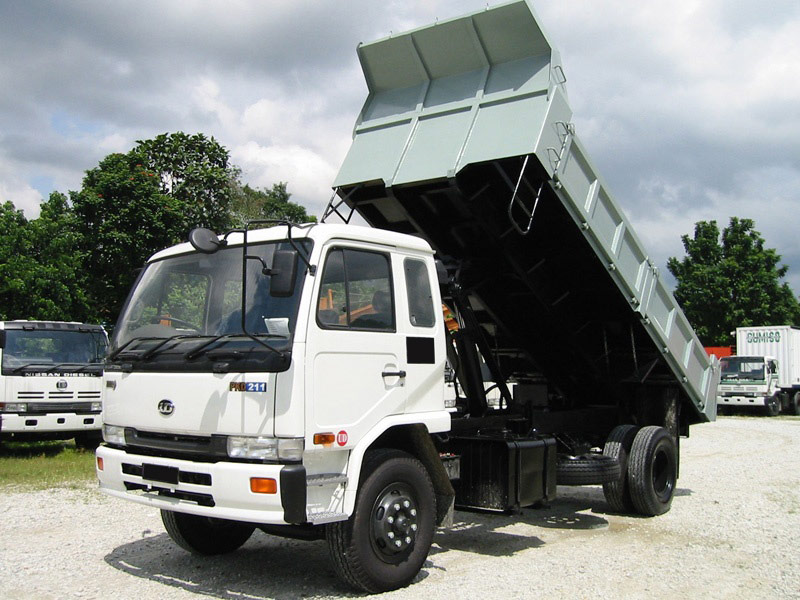

Dump Truck
Dump Truck
