NU 41BT

NU 41BT


Make and model : UD Trucks, TD42T Diesel Engine
Type : 4 cycle, indirect injection, water cooled, turbochanged
Number of cylinders : 6
Bore x stroke : 96 mm x 96 mm
Total piston displacement : 4,169 cc
Max. output (JIS) : 130PS @ 3,500 rpm
Max. Torque (JIS) : 29 kg.m @ 2,000 rpm
Max.Engine Speed (RPM) : 3,700
Compression Ratio : 18.5 : 1
Lubrication system : Forced feed by gear pump
Cooling system : Forced feed by centrifugal water pump

Fuel System
Fuel Injection Pump : In-line Zexel
Covernor : Zexel
Air cleaner : Dry paper element type with cyclone

Weight (kg)
Gross Vehicle Weight : 8,300

Dimensions (mm)
Wheelbase (WB) : 3,795
Overall Length (OL) : 6,860
Overall Width (OW) : 2,125
Overall Height (OH) : 780
Front Tread (FT) : 1,665
Rear Tread (RT) : 1,540
Front Overhang (FOH) : 1,330
Rear Overhang (ROH) : 1,730

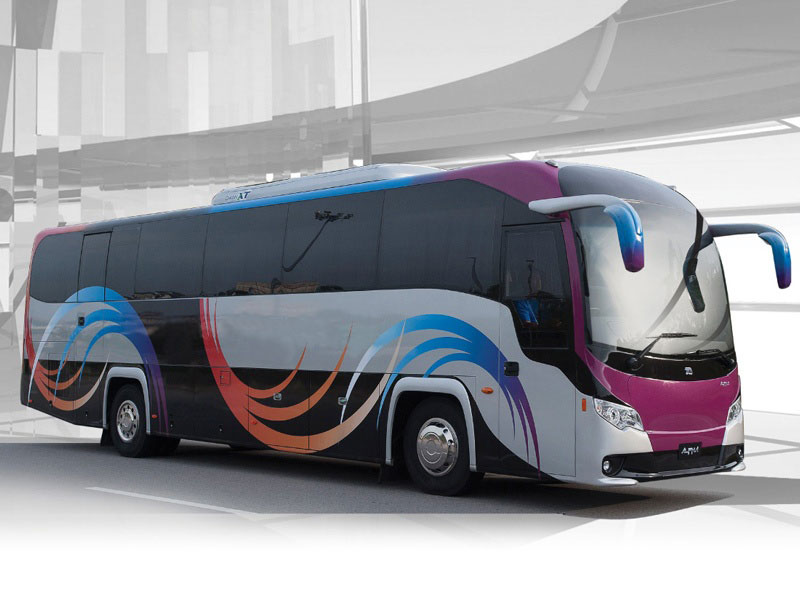

Bus Application
Bus Application
